F-35 SIMULATED DISPLAYS

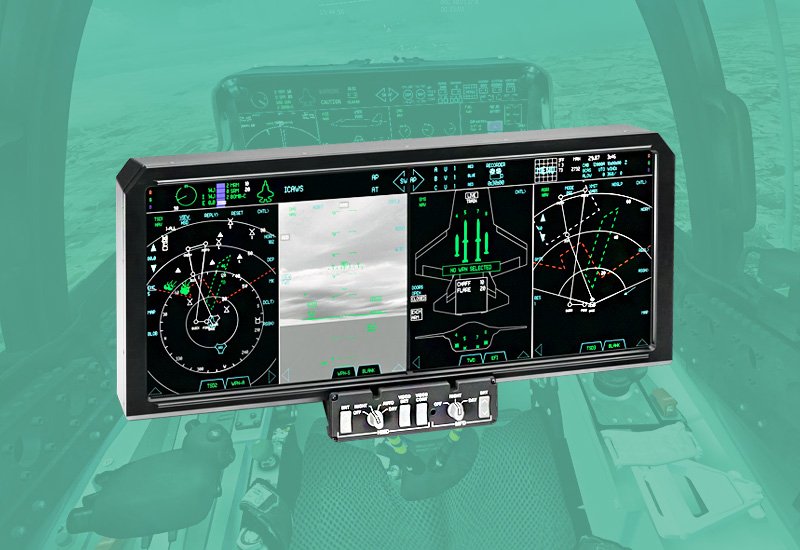

F-35 Panoramic Cockpit Display (PCD)

Aircraft: F-35
Display Type: PCD

  • 8x20 Viewing Area

  • 2560x1024 Image Resolution, 1280x1024 Per Slide

  • Separate Left/Right Video Imagine

  • Auto Select to DVI or VGA Video Input

  • < 0.150” Mulion Between Images

  • Integrated Infrared Touchscreen with RS 232 Communication

  • High Intensity LED Backlight. Brightness Range: 0 to > 200fL

  • Integrated NVIS Control Panel

  • Identical Dimension to Aircraft PCD

F-35 Standby Flight Display (SFD)

Aircraft: F-35
Display Type: SFD

  • 3ATI Indicator

  • 480x480 Pixel Resolution

  • High Intensity LED Backlight

  • Integrated Switch Bezel

  • NVIS Compatible
