B-1B SIMULATED DISPLAYS

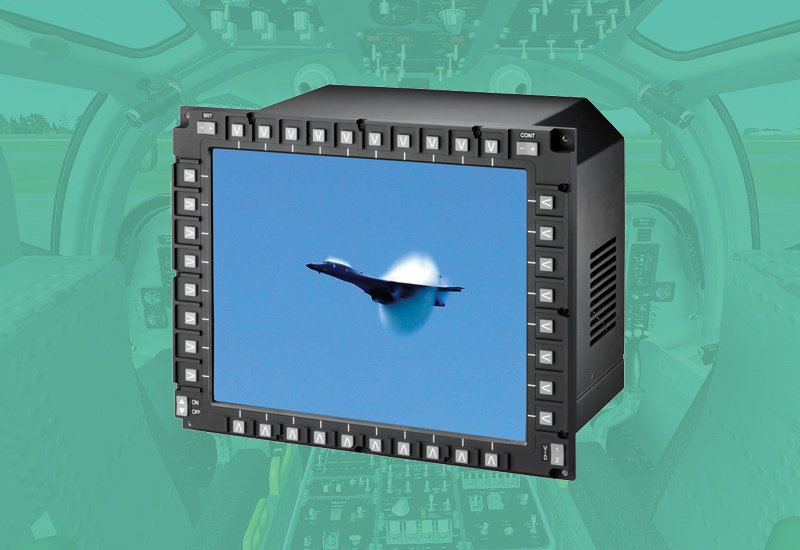

B-1B INTEGRATED DATA LINK (MFD)
Aircraft: B-1B
Display Type: MFD
Full 8x10 Viewable Area
1280x1024 Pixel Resolution
Dual Mode Video Multiplexer
Ultrawide ± 80° H & V Viewing Angles
Custom High Intensity LED Backlight with 8 Bit PWM Dimming
Integrated Switch Bezel with Ethernet ⁄ Serial Communication
NVIS Compatible

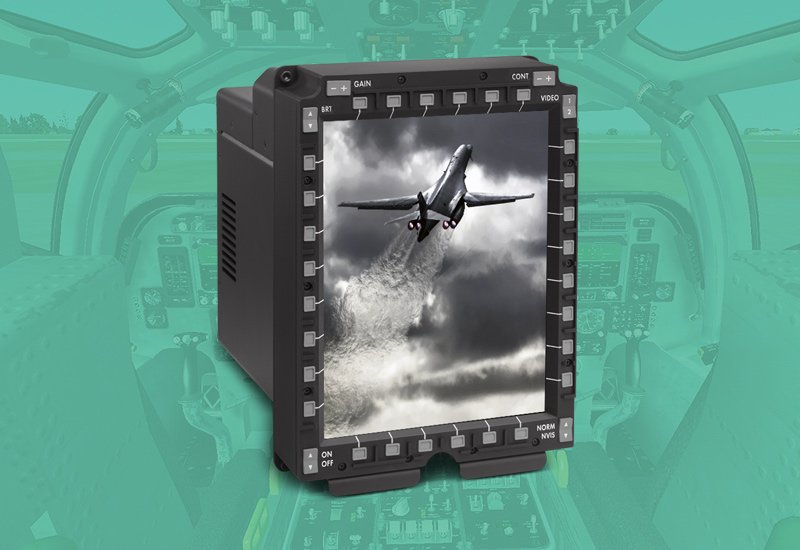

B-1B 6X8 PORTRAIT DISPLAY
Aircraft: B-1B
Display Type: MFD
Aircraft quality high resolution (1024x768) color LCD with ultra wide viewing angles
Dual mode selectable video multiplexer
Custom high intensity LED backlight with wide luminance range
8 Bit (256 levels) PWM dimming
Integrated Switch Bezel
Ethernet communication
Fully NVIS Compatible

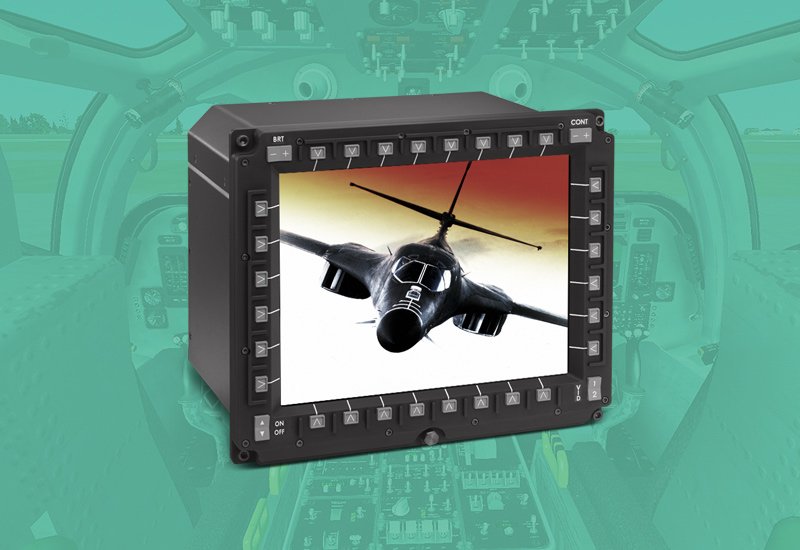

B-1B 8X6 LANDSCAPE DISPLAY
Aircraft: B-1B
Display Type: MFD
Aircraft quality high resolution (1024x768) color LCD with ultra wide viewing angles
Dual mode selectable video multiplexer
Custom high intensity LED backlight with wide luminance range
8 Bit (256 levels) PWM dimming
Integrated Switch Bezel
Ethernet communication
Fully NVIS Compatible
